Economical Location Messaging Unit

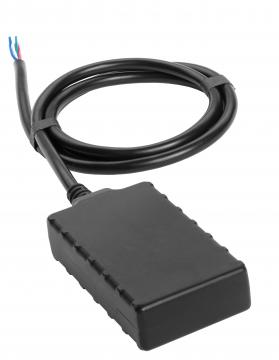

The LMU-300 is an economical, full-featured vehicle tracking product designed for covert and reliable installation in automobiles. The LMU-300 is an ideal solution for stolen vehicle, vehicle finance, auto rental and other automotive tracking applications.

Competitive Price, Competitive Technology, Competitive Edge

The LMU-300 high-value tracking unit from CalAmp features a small size, superior GPS performance, an optional internal 200 mAh back-up battery, ultra low power sleep modes, 3-axis accelerometer for motion sense, and up to two Inputs/Outputs (I/O). The LMU-300 is a complete vehicle tracking and communications device incorporating next-generation, super-sensitive GPS technology on GSM/GPRS cellular networks for installation in any 12 volt mobile vehicle. Superior internal antennas for both cellular and GPS eliminate the need for wired antennas and make the LMU-300 mountable virtually anywhere in the vehicle for easy, inexpensive installations. Messages are transported across the GSM/GPRS network using enhanced SMS or UDP messaging providing a reliable communications link between the device and your application servers. The LMU-300 is designed to dramatically reduce cost, power and size while providing excellent field reliability.

Flexibility

The LMU-300 employs CalAmp’s advanced industry leading on-board alert engine, PEG^TM(Programmable Event Generator) to monitor external conditions and support customer-defined exception-based rules to meet your application requirements. PEG monitors the vehicle environment and responds instantaneously to pre-defined threshold conditions related to time, date, motion, location, geo-zone, input and other event combinations. This behavior can be programmed by CalAmp before shipment, at a customer’s facility, or over-the-air once the unit has been fielded.

Over-the-Air Serviceability

The LMU-300 leverages CalAmp’s management and maintenance system, PULS^TM (Programming, Updates, and Logistics System), for over-the-air configuration parameters, PEG rules, and firmware. This out-of-the-box hands free configuration and automatic post-installation upgrades can monitor unit health status across your customers’ fleets to identify issues before they become expensive problems.

Experience The Advantage

• Economical device
• Superior GPS & cellular quality
• Built-in cellular and GPS antenna for easy installation
• Built-in backup battery option
• Built-in harness
• 3-axis accelerometer for motion, tilt and impact detection
• Low power sleep modes
• Up to 2 inputs and 2 outputs
• Over-the-air update capability for configuration and firmware
• Internal and external antenna configurations
